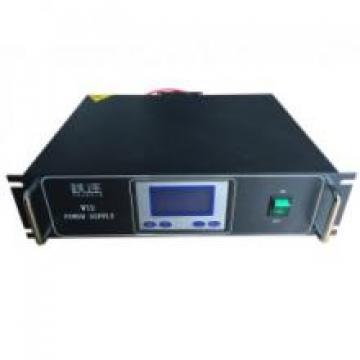

6KV/1KW MF Plasma Cleaning Power Supply-Plasma cleaning power supply

Add to cart

Input voltage：220V
Output power：1KW
Output voltage(Max)：10KV
Output current(Max)：200mA
Output frequency：25KHz
Custom：Yes

Warm prompt: Transition photoelectric sold commodities all pass strict supplier qualification review, review shipment, warehouse full inspection, full inspection process. Change the packing because some goods manufacturer, different batch, different production date, production plants, and so on and so forth, tiny differences lead to physical goods and pictures, so please you to receive goods kind prevail, at the same time we will try to be updated, thus bring you inconvenience locations, thank you!

If you found problems commodity information, Welcome to error correction

Specification:

Product Name		Middle frequency plasma cleaner power supply
Items No.		WT2-6KV
Input Voltage		AC220±10%V
Output	Power	1KW
	Current	0.2A
	Voltage	6KV, 10KV(max)
	Frequency	25Khz
	Waveform	quasi-sine-wave
Output Mode		Custom constant voltage, constant current, constant power
Regulation Precision		≤1%
Efficiency		≥90%
Power Factor		cosΦ≥0.9
Power Switch		DB9 pin connector
Display Mode		Chinese- English LCD display
Insulation Class		B
Protect Grade		IP20
Protection Response Time		1uS
Input Shell Resistance		≥20MΩ, <1Ω
OutputShell Resistance		≥20MΩ, <1Ω
Input Withstand Voltage		2000V/1min
Output Withstand Voltage		3500V/1min
Temperature		0~35℃
Humidity		≤85%
Cooling mode		Air-cooling
Dimensions		40095370(mm)
Note		Factory default TTL analog interface and RS-485 digital interface
Disturbance Display		LCD screen show prompt, fault content and voice prompt, also output the fault signal to two external interfaces.
Application Fields		ozone, dielectric barrier discharge, plasma cleaning, plasma generated experimental, etc.
