- Input voltage：220V
- Output power：500W
- Output voltage(Max)：100V
- Output current(Max)：60A
- Adjustable：Yes
- Custom：Yes
- Cooling mode：Air cooling
|

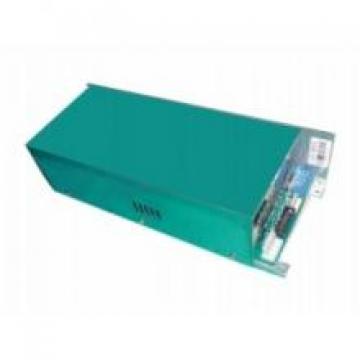

Product Name |
Unipolar pulse power supply |
|
Items No. |
WJB2-MC-DJ-DC-500W |
|
Type |
CNC intelligence power supply, single phase |
|
Input Voltage |
AC220V±10% |
|
Output Power |
500W |
|
Output Current |
30~60A |
|
Output Voltage |
3~100V |
|
Output Frequency |
0~1Khz |
| Output Duty Cycle | 0~50% |
|
Output Wave |
Custom constant voltage |
|
Waveform |
Unipolar DC pulse |
| Output Polarity | negative, positive(options) |
|
Regulation Precision |
≤1% |
|
Efficiency |
≥90% |
|
Power Factor |
cosΦ≥0.9 |
|
Power Switch |
DB9 pin connector |
|
Display Mode |
Chinese- English LCD display |
|
Insulation Class |
B |
|
Protect Grade |
IP20 |
|
Protection Response Time |
1uS |
|
Input Shell Resistance |
≥20MΩ |
|
Output Shell Resistance |
≥20MΩ |
|
Input Withstand Voltage |
2000V/1min |
|
Output Withstand Voltage |
3500V/1min |
|
Temperature |
-35~+45℃ |
|
Humidity |
≤85% |
|
Cooling mode |
Air-cooling |
|
Dimensions |
206*104*65(mm) |
|
Application Fields |
Drive semiconductor laser, LED light, other resisitive load. |
