- Input voltage：220V
- Output power：1KW
- Output voltage(Max)：2KV
- Output current(Max)：500mA
- Adjustable：Yes
- Custom：Yes
- Cooling mode：Air cooling
|
Name |

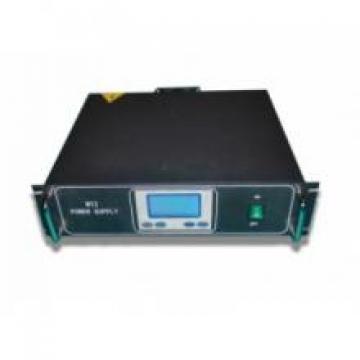

1KW DC High Voltage Bombardment Power Supply |
|||
|
Model |
WT2-2KV |
|||
|
Brand |
Yochain |
|||
|
Input： |
AC220±10%V |
|||
|
Output |
Power: |
1KW |
||
|
Current: |
50mA~500mA |
|||
|
: |
2KV |
|||
|
Waveform: |
DC |
|||
|
Mode |
Custom constant voltage, constant current, constant power |
|||
|
Adjustment accuracy |
≤1% |
|||
|
Efficiency |
≥90% |
|||
|
Power factor |
cosΦ≥0.9 |
|||
|
Switch |
DB9 Pin |
|||
| Control |
Screen |
|||
|
TTL, RS485/RS323 |
||||
|
|
||||
|
Display |
Chinese, English, LCD display |
|||
|
Insalation grade |
Class-B |
|||
|
Protection grade |
IP20 |
|||
|
Protection response time |
1uS |
|||
|
Input |
resistance to case |
≥20MΩ |
||
|
Output |
||||
|
Input withstand voltage to case |
2000V/1min |
|||
|
Output withstand voltage to case |
3500V/1min |
|||
