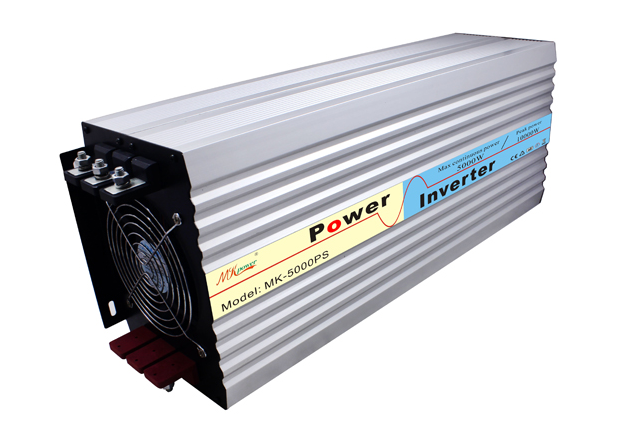

Pure sine wave power inverter 5KW
Output power: 5000W
Output power(max): 10000W
Input voltage: DC 12V
Output voltage: AC 110V
No-load current: <1.2A
Output frequency: 50HZ ± 0.5Hz
Output waveform: pure sine wave
Waveform distortion: THD <3% (linear load)
Output efficiency:> 85%
Protection: undervoltage / overvoltage, overload, over temperature, reverse connection, short circuit protection
Working environment temperature: 0 to 40 ℃
Storage temperature: (-30) to 70 ℃
Product Size: 545 * 199 * 147 (mm)
Accessories
Line: 16mm², 60cm * 4 pairs
Model Series:
MK-5000PS-121 / MK-5000PS-122 / MK-5000PS-241 / MK-5000PS-242 / MK-5000PS-481 / MK-5000PS-482
Model Name
Power
Input (VDC)
Output (VAC / Hz)
MK-5000PS-121
5000W
12V
110V
MK-5000PS-122
5000W
12V
220V
MK-5000PS-241
5000W
24V
110V
MK-5000PS-242
5000W
24V
220V
MK-5000PS-481
5000W
48V
110V
MK-5000PS-482
5000W
48V
220V
5000w power inverter circuit diagram:

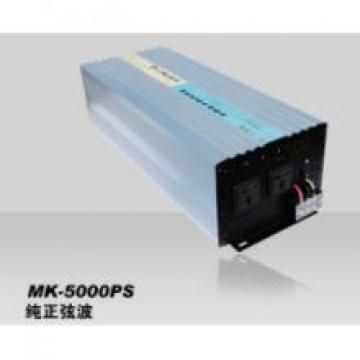

Model No.: MK-5000PS-121
