- Input voltage：220V
- Output power：1KW
- Output voltage(Max)：1KV
- Output current(Max)：100A
- Adjustable：Yes
- Custom：Yes
- Cooling mode：Air cooling
|

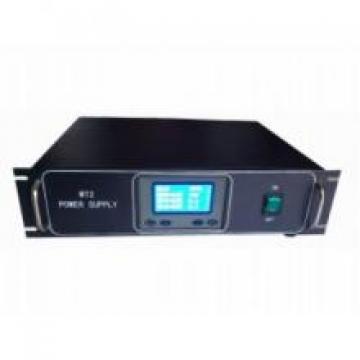

Product Name |
Unipolar pulse power supply |
|
Items No. |
WT2-MC-SJ-10V/0.1A/1KW |
|
Type |
CNC intelligence power supply, single phase |
|
Input Voltage |
AC220V±10% |
|
Output Power |
1KW |
|
Output Current |
0.1A |
|
Output Voltage |
10KV |
|
Output Frequency |
1~255hz |
| Output Duty Cycle | 1~99% |
|
Output Wave |
Custom constant voltage, constant current, constant power |
|

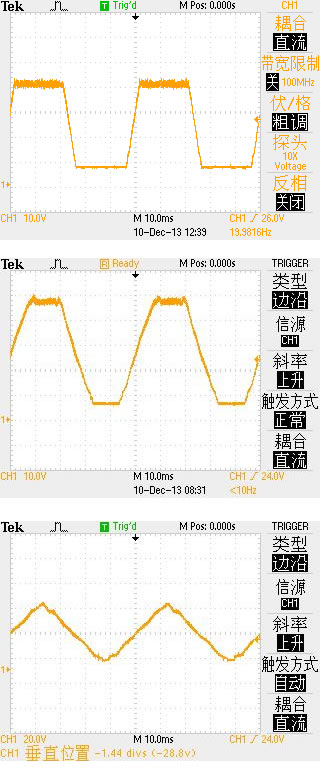

Waveform |
sine wave, square wave, trapezoidal wave, triangle wave, sawtooth wave, etc. |
|
Regulation Precision |
≤1% |
|
Efficiency |
≥90% |
|
Power Factor |
cosΦ≥0.9 |
|
Power Switch |
DB9 pin connector |
|
Display Mode |
Chinese- English LCD display |
|
Insulation Class |
B |
|
Protect Grade |
IP20 |
|
Protection Response Time |
1uS |
|
Input Shell Resistance |
≥20MΩ |
|
Output Shell Resistance |
≥20MΩ |
|
Input Withstand Voltage |
2000V/1min |
|
Output Withstand Voltage |
3500V/1min |
|
Temperature |
-35~+45℃ |
|
Humidity |
≤85% |
|
Cooling mode |
Air-cooling |
|
Dimensions |
400*95*370(mm) |
|
Disturbance Display |
LCD screen show prompt, fault content and voice prompt, also output the fault signal to two external interfaces. |
|
Application Fields |
For special occasions need high voltage pulse signal |
