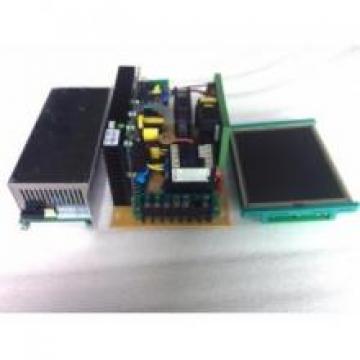

5MHz E-light power system WK5C-EC-Power system

Add to cart

Warm prompt: Transition photoelectric sold commodities all pass strict supplier qualification review, review shipment, warehouse full inspection, full inspection process. Change the packing because some goods manufacturer, different batch, different production date, production plants, and so on and so forth, tiny differences lead to physical goods and pictures, so please you to receive goods kind prevail, at the same time we will try to be updated, thus bring you inconvenience locations, thank you!

If you found problems commodity information, Welcome to error correction

WK5C-EC Power system:

* WN5C controller with LCD display

* WN2 power supply: 800W IPL

* WS2 power supply: 50W RF

WK5C controller parameter:

Item No.: WK5C

Size: 8 inch

Dimension: 202*149*47mm

Install size: 192.5*142mm 192.5*88mm

Display mode: truecolor

Language: Simple Chinese, Traditional Chinese, English, other customize

Function: Software voltage regulation, frequency regulation, water protection, water quality detection, temperature detection, work points

WN2 IPL 800W power supply parameter:

Name	IPL power supply
No.	WN2 800W
Type	High power pulse
Input voltage	AC 220V±20%	AC 110V±10% (customazation)
Input frequency	50Hz, 60Hz	50Hz, 60Hz
Input current	5A	10A
Input power	1000W
Output power	800W
Output voltage	Up to 430V
Reservoir capacitance	10000uf-30000uf/450V
Work current	Average 4A, 5A up to 20A
External dimension	230mm165mm116mm

WS2 50W RF power supply parameter:

Name	RF power supply
No.	WS2-5MX
Type	RF
Max. output power	50W (adjustable)
Work frequency	5MHz
Input voltage	AC 220V±20% ; AC110V±10% (optional)
External dimension	262mm103mm65mm
Install dimension	153mm*87mm
Work Temperature	-10℃--40℃
Humidity	≤90%
Weight	0.94kg
Controller	A.Use our company's controller
	B.Use external device to control through data interface
	C. Use pedals switching and potentiometer for power supply own's controller to control
