Home> Beauty Machine Power Supply> YAG laser power supply>ND:YAG Laser Power Supply 200W

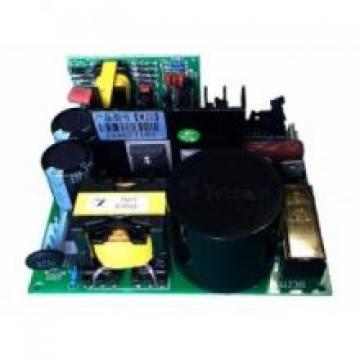

ND:YAG Laser Power Supply 200W

Laser power supply: ND:YAG laser power supply 200W ND:YAG laser power supply Output power: 200W Voltage regulation range of energy storage capacitor 650-1000V Without pre ignition circuit
Price: $83.3 $83.3
ND:YAG Laser Power Supply 200W
Share
Favorite
  • Brand: YOCHAIN
  • Time:
  • Weight:550gram
  • Serial number:WJ3
Rating:
100 %
0 comments
  • Input voltage：220V/110V
  • Output power：200W
  • Output voltage(Max)：1KV
  • Output current(Max)：5A
Warm prompt: Transition photoelectric sold commodities all pass strict supplier qualification review, review shipment, warehouse full inspection, full inspection process. Change the packing because some goods manufacturer, different batch, different production date, production plants, and so on and so forth, tiny differences lead to physical goods and pictures, so please you to receive goods kind prevail, at the same time we will try to be updated, thus bring you inconvenience locations, thank you!
If you found problems commodity information, Welcome to error correction

WJ3 ND YAG laser power supply parameter:

Name

ND YAG power supply

No.

WJ3

Laser type

ND:YAG

Input voltage

220V±20%/50Hz, 60Hz; 110V±10%/50Hz, 60Hz

Input power

300W

Output power

200W

Output frequency

1-5Hz

Stored energy electric capacity

100uF/1400V

Max work curren

Average 1A, peak 5A

Output voltage

Stored energy electric capacity 650~1000V

External dimension

122mm*100mm*60mm

Install dimension

116mm*94mm

Work humidity

90%
