- Input voltage：380V
- Output power：10KW
- Output voltage(Max)：1KV
- Output current(Max)：12A
Parameter:
|
Product Name |

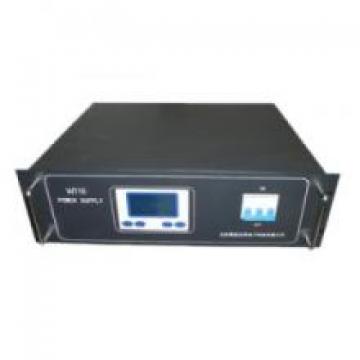

DC magnetron sputtering plating power supply |
|
Items No. |
WT10-JS-DC-10KW |
|
Type |
CNC intelligence power supply |
|
Input Voltage |
AC380V±10% |
|
Output Power |
10KW |
|
Output Current |
DC 0~12A |
|
Output Voltage |
Work voltage 200V~800V, No-Load Voltage>1kV |
|
Output Wave |
Custom constant voltage, constant current, constant power |
|
Waveform |
mono-polar DC |
|
Work mode |
steady pressure |
|
Regulation Precision |
≤1% |
|
Efficiency |
≥90% |
|
Power Factor |
cosΦ≥0.9 |
|
Display Mode |
Chinese-English LCD display |
|
Display Content |
Working state, output voltage, output current, set value |
|
Output Protection |
Output overvoltage, output overcurrent and output offset |
|
Input Protection |
Output overvoltage, Output undervoltage, input overcurrent, open phase |
|
Safety Protection |
Grounding protection, leakage protection, external control protection, lightning protection, overheating |
|
Insulation Class |
B |
|
Protect Grade |
IP20 |
|
Protection Response Time |
1uS |
|
Input Shell Resistance |
≥20MΩ |
|
Output Shell Resistance |
≥20MΩ |
|
Input Withstand Voltage |
2000V/1min |
|
Output Withstand Voltage |
3500V/1min |
|
Temperature |
0~35℃ |
|
Humidity |
≤80% |
|
Cooling mode |
Air-cooling |
|
Dimensions |
480*135*380(mm) |
|
Note |
Factory default analog interface |
Control Mode:
- Computer panel and buttons control
- Analog signal control: TTL potential, can control the work stop, the output voltage, output current or output power, external open circuit protection (generally for water protection)
- Digital interface control can be custoimization: RS-485 communications, RS-232 232 interface
Feature:
- Small volume, light weight, high efficiency, simple structure, easy to operation, powerful, stable and reliable.
- Unique perfect protection make the power supply can work in all kinds of complicated environment, prompt function in both Chinese and English make the problem clear and accurate.
- Can plate insulation film, do not produce arc, load to adapt to a wide range
