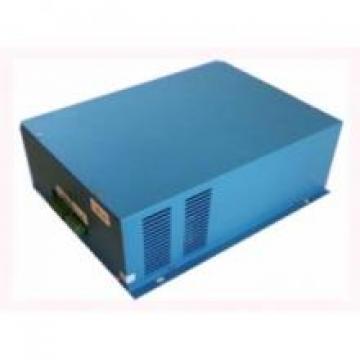

WJE2L-100W 40KV 30mA CO2 Laser Power Supply

• Input voltage：220V/110V
• Output power：100W
• Output voltage(Max)：40KV
• Output current(Max)：30mA

Parameter:

Name: 100W CO2 laser power

Number: WJE2L-100W

Brand: Yochain

Input Voltage: AC220V±10% 110V

Output Laser Power: 100W

Output Curent: 30mA

Output Voltage: 40KV

Response Time: ≤1mS

Optocoupler Interface Controller: DC(5±2V) / bright dipping

Laser Power Adjustable: 1. adjust the output current by potentiometer, 2. controlled by PWM (TTL level)

Laser Switch: manual operation or optocoupler interfaceWork Temperature: -10~+40℃

Environment Humidity: ≤85%

Cooling Mode: air cooling

Dimension: 280*225*113 (mm)

Matchable: drive 100 laser tube, genaral 1.6m length

Application: Acrylic engraving/cutting; cloth carving/cutting; double color plate engravingcutting; rubber engraving/cutting, etc.
