Specification:
|
Name |

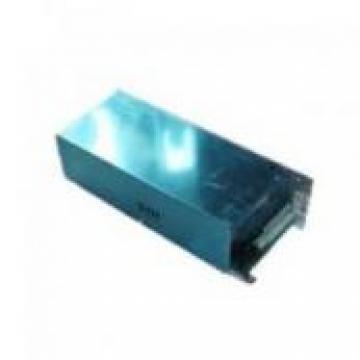

Ultrasonic power supply |
|
No. |
WS2-CS |
|
Brand |
Yochain |
|
Type |
Ultrasonic |
|
Ultrasonic power |
50W~300W |
|
Ultrasonic frequency |
25KHz~200KHz (optional) |
|
Output power(W) |
0%-100% adjustable |
|
Input voltage |
AC 220V±20% ; AC110V±10% (optional) |
|
Max. Work current |
1.5A |
|
External dimension |
262mm*103mm*65mm |
|
Install dimension |
153mm*87mm |
|
Security isolation voltage |
1000V AC |
|
Max. temperature |
≤65℃(environment temperature: 25℃) |
|
Work Temperature |
-25℃--60℃ |
|
Max. temperature rise |
30℃ |
|
Storage temperature |
-40℃-+85℃ |
|
Display mode |
Suitable for WK series controller |
|
Controller |
A.Use our company's controller |
|
|
B.Use external device to control through data interface |
