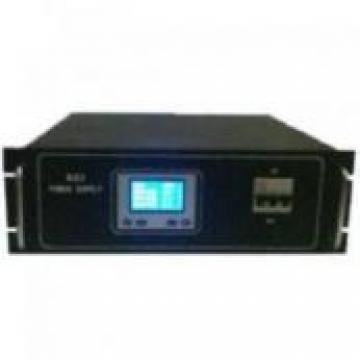

- Input voltage：380V
- Output voltage(Max)：40KV
- Output current(Max)：2000A
If you found problems commodity information,
Welcome to error correction
PARAMETER:
| Number | WJE3-YAG |
| Brand | Yochain |
| Input Voltage | AC380V±10%, AC220V(option) |
| Output Current | 2KA |
| Output Voltage | DC 40KV |
| Pulse Width | 300uS |
| Response Speed | ≤1mS |
| Optocoupler Interface Controller | DC(5±2V) / bright dipping |
| Laser Power Adjustable | 1. adjust the output current by potentiometer, 2. controlled by PWM (TTL level) |
| Laser Switch | manual button, or optocoupler interface |
| Work Temperature | -10~+40℃ |
| Environment Humidity | ≤85% |
| Cooling Mode | air cooling |
| Dimension | 380*480*135(mm) |
| Install Size | 70*455(mm) |
| Oil Box Size | 450*400*400(mm) |
| Hole Mount Size | 396*200(mm) |
| Application | Laser cutting, engraving, welding, marking, etc. |
