- Input voltage：220V
Main technical paramters:
|
Product Name |

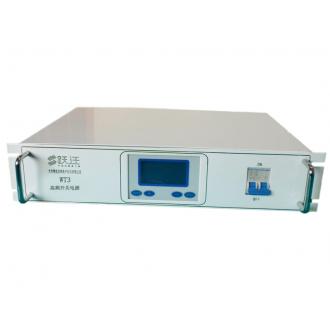

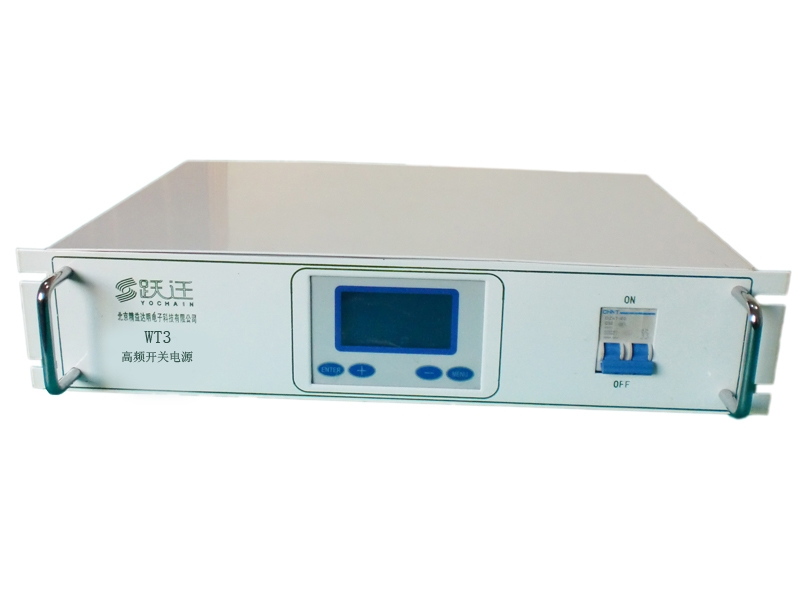

Dielectric barrier discharge plasma power supply |
|
|
Items No. |
WT3DBD-10KV |
|
|
Input Voltage |
AC220±10%V |
|
|
Output |
Power |
3KW |
|
Current |
0.3A |
|
|
Voltage |
10KV |
|
|
Frequency |
20~50Khz |
|
|
Waveform |
quasi-sine-wave |
|
|
Output Mode |
Custom constant voltage, constant current, constant power |
|
|
Regulation Precision |
≤1% |
|
|
Efficiency |
≥90% |
|
|
Power Factor |
cosΦ≥0.9 |
|
|
Power Switch |
DB9 pin connector |
|
|
Display Mode |
Chinese- English LCD display |
|
|
Insulation Class |
B |
|
|
Protect Grade |
IP20 |
|
|
Protection Response Time |
1uS |
|
|
Input Shell Resistance |
≥20MΩ |
|
|
Output Shell Resistance |
≥20MΩ |
|
|
Input Withstand Voltage |
2000V/1min |
|
|
Output Withstand Voltage |
3500V/1min |
|
|
Temperature |
0~35℃ |
|
|
Humidity |
≤85% |
|
|
Cooling mode |
Air-cooling |
|
|
Dimensions |
480*95*370(mm) |
|
|
Note |
Factory default TTL analog interface and RS-485 digital interface |
|
|
Disturbance Display |
LCD screen show prompt, fault content and voice prompt, also output the fault signal to two external interfaces. |
|
|
Application Fields |
ozone, dielectric barrier discharge, plasma cleaning, plasma generated experimental, etc. |
|
Application:
ozone generation, dielectric barrier discharge, plasma cleaning and plasma formation.
