- Input voltage：220V
- Output power：2W
- Output voltage(Max)：12KV
- Output current(Max)：0.1mA
- Overall dimensions：65mm*40mm*28mm
If you found problems commodity information,
Welcome to error correction
|

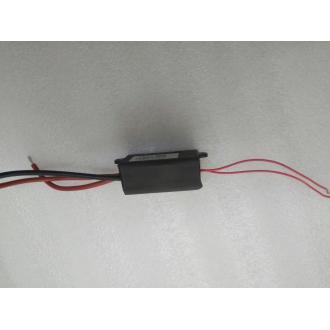

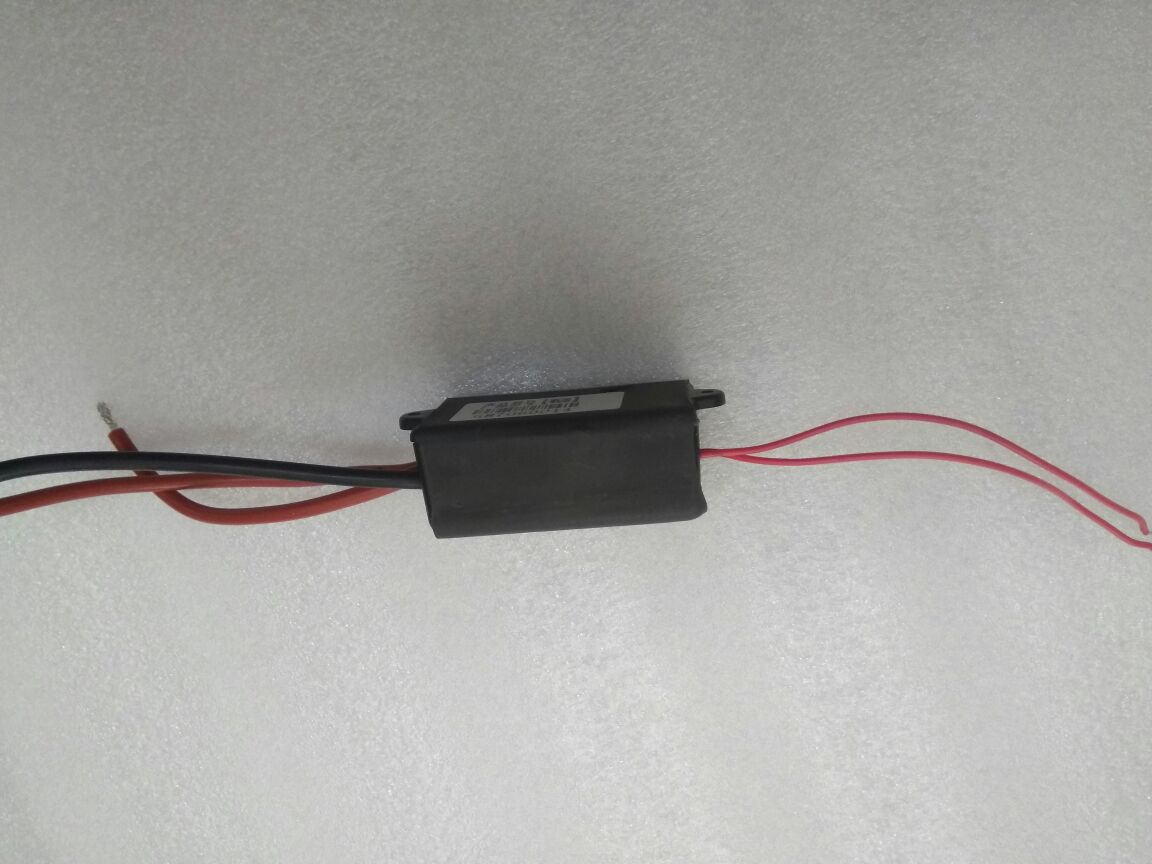

2w air purifier /cleaner electrostatic switch power supply |
|
 |
Product Features · Input: 176~264V · Protection: over-load, over-temprature, short-circuit · Small size and high efficiency · Low output ripple |
|
Item Name |
2W electrostatic air purifying power supply |
|
Item No. |
WG8 |
|
Input Voltage |
AC220±20%V, AC110±15%V |
|
Brand |
Yochain |
|
Output Power |
2W |
|
Output Voltage |
DC 2-12KV(max) |
|
Output Current |
DC 0.05-0.1mA(max) |
|
Response Speed |
≤1mS |
|
Voltage Regulator |
Regulated by a potentiometer |
|
Switch |
No need controller, or control by external switc |
|
Temperature |
-10~+40℃ |
|
Humidity |
≤85% |
|
Cooling Mode |
air cooling |
|
Size |
65*40*28mm |
|
Application |
Air purification, fume purification, flue gas denitration, etc. |
