- Input voltage：220V/110V
- Output power：50W
- Output voltage(Max)：15KV
- Output current(Max)：10mA
- Custom：Yes
If you found problems commodity information,
Welcome to error correction
Features:
1. Universal AC input / Voltage range( 176VAC to 264VAC, 90VAC~130VAC is optional)
2.Protections: Overload / Over voltage /short circuit
3.Compliance to worldwide safety regulations for lighting
4.Small size and high efficiency
5.Full load aging test and low output ripple
6.Output powe: 5W/10W/20W/50W
7.Application: Air cleaners/purifier, Air purification, fume purification, flue gas denitration, etc.,etc.
8.We can customize it for you according to your requirements.
|

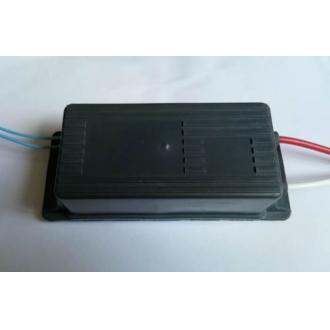

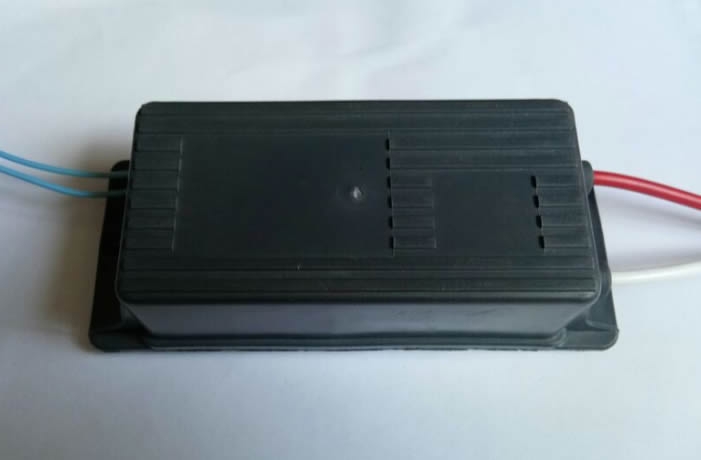

WG4-5/10/20/50W One-output Power Supply
|
|
|
Product Features
|
| Model | WG4-5 | WG4-10 | WG4-20 | WG4-50 |
| Input Voltage | 176~264VAC | |||
| Input Frequency | 47~63Hz | |||
| Output Power | 5W | 10W | 20W | 50W |
| Output Voltage | DC 3~10mA(max) | |||
| Output Current | DC 5-15KV(max) (one-output and dual-output is optional, without distinction positive and negative pole, it can be used arbitrarily) | |||
| Response Time | ≤1mS | |||
| Interface Control | TTL interface, work operation, voltage adjustable, work indication, fault indication | |||
| Power Regulation |
1. Regulation output current by the potentiometer 2. Stable output voltage |
|||
| Power Switch | No need control, or you can use a external swith to control | |||
| Temperature | -10~+40℃ | |||
| Humidity | ≤85% | |||
| Cooling Mode | Air-cooling | |||
| Dimensions | 146*60*40(mm) | |||
| Application | Air purification, fume purification, flue gas denitration, etc. | |||
